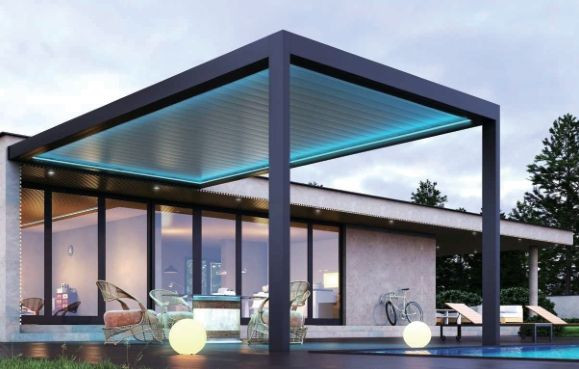

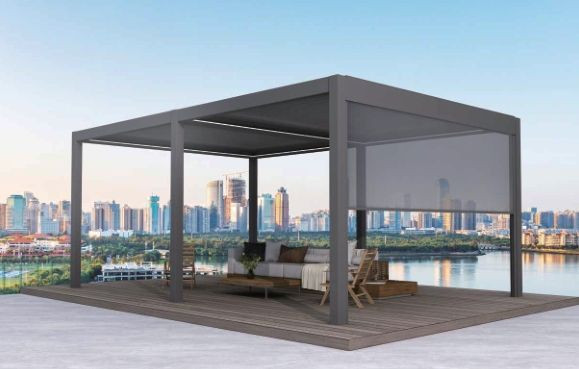

Intelligent Pavilion

Product Description:

Specifications & Parameters:

• Frame Material:
  High-grade powder-coated aluminum alloy (6063-T5 or equivalent)

• Louver Material:
  Adjustable aluminum louvers with 0–135° rotation range

• Standard Sizes:

  • 3m x 3m

  • 3m x 4m

  • 4m x 6m
    (Custom dimensions available on request)

• Height:
  Standard height: 2.5 – 3m

• Color Options:

  • Matte Black

  • Charcoal Grey

  • White (RAL customization available)

• Motor Type:
  Integrated electric motor (IP67 waterproof, low-noise) with remote control or app control

• Drainage System:
  Built-in hidden gutter and downspout system for rainwater management

• Lighting:
  Integrated dimmable LED strip lights (RGB or warm white options)

• Wind Resistance:
  Up to 110 km/h (tested and certified)

• Snow Load Capacity:
  Up to 120–150 kg/m² (depending on design configuration)



Key Features:

• 🌦️ All-Weather Performance:
  Rotating louvers provide sunlight control, shade, and protection from rain or snow.

• 💡 Ambient LED Lighting:
  Energy-efficient integrated LED strips enhance nighttime ambiance.

• 🕹️ Smart Control System:
  Remote-controlled or app-enabled louver operation and lighting (compatible with smart home systems)

• 🛠️ Modular & Customizable:
  Expandable modular design to cover larger areas or connect multiple units.

• 🏡 Modern Architectural Aesthetic:
  Sleek, minimalist design with a premium aluminum finish to match contemporary homes and buildings.

• 🧱 Surface or In-Ground Mounting:
  Suitable for deck, concrete slab, or landscaped installation with anchor systems.

Applications:

• Residential patios and backyards

• Outdoor lounges and restaurants

• Hotels and resorts

• Poolside pavilions

• Rooftop terraces and cafes

Package Includes:

• Complete aluminum frame structure

• Adjustable motorized louver system

• LED lighting strips (pre-installed)

• Integrated drainage system

• Electrical motor & remote control

• Mounting hardware and installation manual
